BLANKING PLUG – CAMOZZI
| Thread | Part No. |
|---|---|
| M12 x 1.5 | 7621SB |
| M16 x 1.5 | 7622SB |
| M22 x 1.5 | 7623SB |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-181
ELBOW CONNECTOR – CAMOZZI
| Tube | Part No. | Pkt No. | Pkt Qty. |
|---|---|---|---|
| 10 x 1mm | CC6537 | CAM337 | 1 |
| 12 x 1.5mm | CC6539 | CAM339 | 1 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-162
ELBOW STUD – CAMOZZI
| Tube OD | Thread Size | Part No. | Pkt No. | Pkt Qty. |
|---|---|---|---|---|
| 6 x 1mm | M12 x 1.5 | CC6602 | CAM402 | 1 |
| 6 x 1mm | M16 x 1.5 | CC6603 | CAM403 | 1 |
| 8 x 1mm | M12 x 1.5 | CC6604 | CAM404 | 1 |
| 8 x 1mm | M14 x 1.5 | CC6607 | CAM407 | 1 |
| 8 x 1mm | M16 x 1.5 | CC6605 | CAM405 | 1 |
| 8 x 1mm | M22 x 1.5 | CC6606 | CAM406 | 1 |
| 10 x 1mm | M12 x 1.5 | CC6610 | CAM410 | 1 |
| 10 x 1mm | M16 x 1.5 | CC6613 | CAM413 | 1 |
| 10 x 1mm | M22 x 1.5 | CC6614 | CAM414 | 1 |
| 10 x 1.25mm | M12 x 1.5 | CC6610.25 | CAM410.25 | 1 |
| 10 x 1.25mm | M16 x 1.5 | CC6613.25 | CAM413.25 | 1 |
| 10 x 1.25mm | M22 x 1.5 | CC6614.25 | CAM414.25 | 1 |
| 10 x 1.5mm | M12 x 1.5 | CC6610.5 | CAM410.5 | 1 |
| 10 x 1.5mm | M16 x 1.5 | CC6613.5 | CAM413.5 | 1 |
| 10 x 1.5mm | M22 x 1.5 | CC6614.5 | CAM414.5 | 1 |
| 12 x 1.5mm | M16 x 1.5 | CC6619 | CAM419 | 1 |
| 12 x 1.5mm | M22 x 1.5 | CC6620 | CAM420 | 1 |
| 16 x 2mm | M16 x 1.5 | CC6625 | CAM425 | 1 |
| 16 x 2mm | M22 x 1.5 | CC6626 | CAM426 | 1 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-181
RELEASE TOOL – CAMOZZI
| Tube OD | Part No. | Pkt No. |
|---|---|---|
| 6mm | CC7406 | CAM7406 |
| 8mm | CC7408 | CAM7408 |
| 10mm | CC7410 | CAM7410 |
| 12mm | CC7412 | CAM7412 |
| 15mm | CC7415 | CAM7415 |
| 16mm | CC7416 | CAM7416 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-186
STRAIGHT CONNECTOR – CAMOZZI
| Tube | Part No. | Pkt No. | Pkt Qty. |
|---|---|---|---|
| 6 x 1mm | CC6502 | CAM302 | 2 |
| 8 x 1mm | CC6504 | CAM304 | 1 |
| 10 x 1mm | CC6506 | CAM306 | 1 |
| 10x1.25mm | CC6506.25 | CAM306.25 | 1 |
| 10 x 1.5mm | CC6506.5 | CAM306.5 | 1 |
| 12 x 1.5mm | CC6508 | CAM308 | 1 |
| 15 x 1.5mm | CC6511 | CAM311 | 1 |
| 16 x 2mm | CC6512 | CAM312 | 1 |
| 18 x 2mm | CC6509 | N/A | N/A |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-150
STRAIGHT STUD – CAMOZZI
| Tube OD | Thread Size | Part No | Pkt No. | Pkt Qty. |
|---|---|---|---|---|
| 6 x 1mm | M10 x 1 | CC4502 | CAM502 | 1 |
| 6 x 1mm | M12 x 1.5 | CC4503 | CAM503 | 1 |
| 6 x 1mm | M14 x 1.5 | CC4504 | CAM504 | 1 |
| 6 x 1mm | M16 x 1.5 | CC4505 | CAM505 | 1 |
| 6 x 1mm | M22 x 1.5 | CC4506 | CAM506 | 1 |
| 8 x 1mm | M10 x 1 | CC4507 | CAM507 | 1 |
| 8 x 1mm | M12 x 1.5 | CC4508 | CAM508 | 1 |
| 8 x 1mm | M14 x 1.5 | CC4509 | CAM509 | 1 |
| 8 x 1mm | M16 x 1.5 | CC4510 | CAM510 | 1 |
| 8 x 1mm | M22 x 1.5 | CC4511 | CAM511 | 1 |
| 10 x 1mm | M12 x 1.5 | CC4513 | CAM513 | 1 |
| 10 x 1mm | M16 x 1.5 | CC4515 | CAM515 | 1 |
| 10 x 1mm | M22 x 1.5 | CC4516 | CAM516 | 1 |
| 10 x 1.25mm | M12 x 1.5 | CC4517 | CAM517 | 1 |
| 10 x 1.25mm | M16 x 1.5 | CC4519 | CAM519 | 1 |
| 10 x 1.25mm | M22 x 1.5 | CC4520 | CAM520 | 1 |
| 10 x 1.5mm | M12 x 1.5 | CC4522 | CAM522 | 1 |
| 10 x 1.5mm | M16 x 1.5 | CC4524 | CAM524 | 1 |
| 10 x 1.5mm | M22 x 1.5 | CC4525 | CAM525 | 1 |
| 12 x 1.5mm | M12 x 1.5 | CC4527 | CAM527 | 1 |
| 12 x 1.5mm | M16 x 1.5 | CC4529 | CAM529 | 1 |
| 12 x 1.5mm | M22 x 1.5 | CC4530 | CAM530 | 1 |
| 15 x 1.5mm | M22 x 1.5 | CC4533 | CAM533 | 1 |
| 16 x 2mm | M16 x 1.5 | CC4536 | CAM536 | 1 |
| 16 x 2mm | M22 x 1.5 | CC4537 | CAM537 | 1 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-124

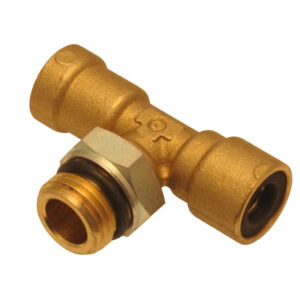

TEE BRANCH STUD – CAMOZZI
| Tube OD | Thread Size | Part No |
|---|---|---|
| 10 x 1mm | M16 x 1.5 | CC6638 |
| 10 x 1.5mm | M16 x 1.5 | CC6638.5 |
| 10 x 1mm | M22 x 1.5 | CC6639 |
| 10 x 1.5mm | M22 x 1.5 | CC6639.5 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-182
TEE CONNECTOR – CAMOZZI
| Tube OD | Part No | Pkt No. | Pkt Qty. |
|---|---|---|---|
| 6 x 1mm | CC6517 | CAM317 | 1 |
| 8 x 1mm | CC6519 | CAM319 | 1 |
| 10 x 1mm | CC6521 | CAM321 | 1 |
| 10 X 1.5mm | CC6521.5 | CAM321.5 | 1 |
| 12 x 1.5mm | CC6523 | CAM323 | 1 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-156

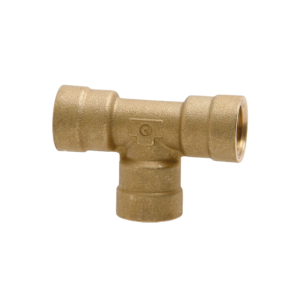

TEE FEMALE – CAMOZZI
| Thread | Part No. | Pkt No. | Pkt Qty. |
|---|---|---|---|
| M22 x 1.5 | CC4595 | CAM595 | 1 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-98

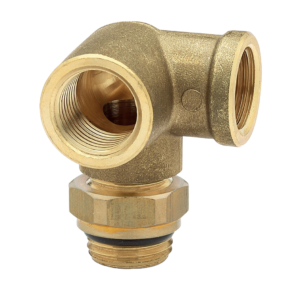

THREE WAY BLOCK CONNECTOR MALE/FEMALE – CAMOZZI
| Female Threads | Male Thread | Part No. |
|---|---|---|
| M16 x 1.5 | M16 x 1.5 | CC6860 |
| M16 x 1.5 | M22 x 1.5 | CC6861 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-181
Y TYPE STUD CONNECTOR – CAMOZZI
| Tube Size | Male Thread | Part No. |
|---|---|---|
| 8 x 1mm | M16 x 1.5 | CC6830 |
| 12 x 1.5mm | M22 x 1.5 | CC6831 |
Camozzi Push-In fittings have been designed for use in the braking system of commercial vehicles and are certified to TUV Standards.
Fittings are in compliance with the following standards: DIN 74324:1996, DIN EN ISO 9227:2006, DIN EN 60068-2-6:1996, GOST 4364-81 and GOST R 51190-181
