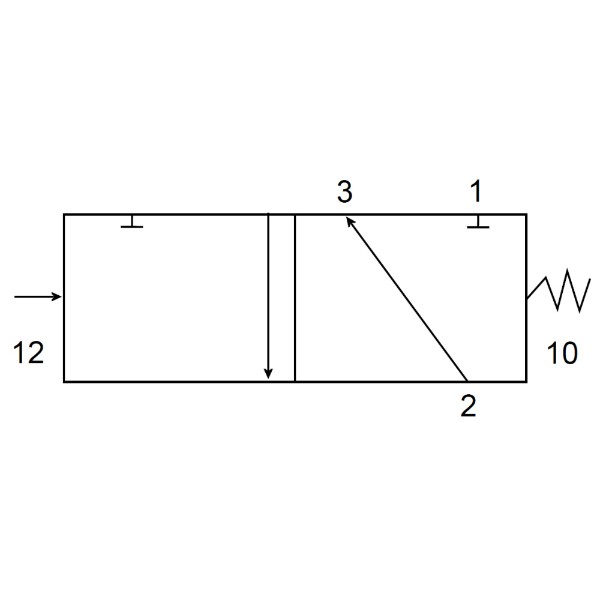

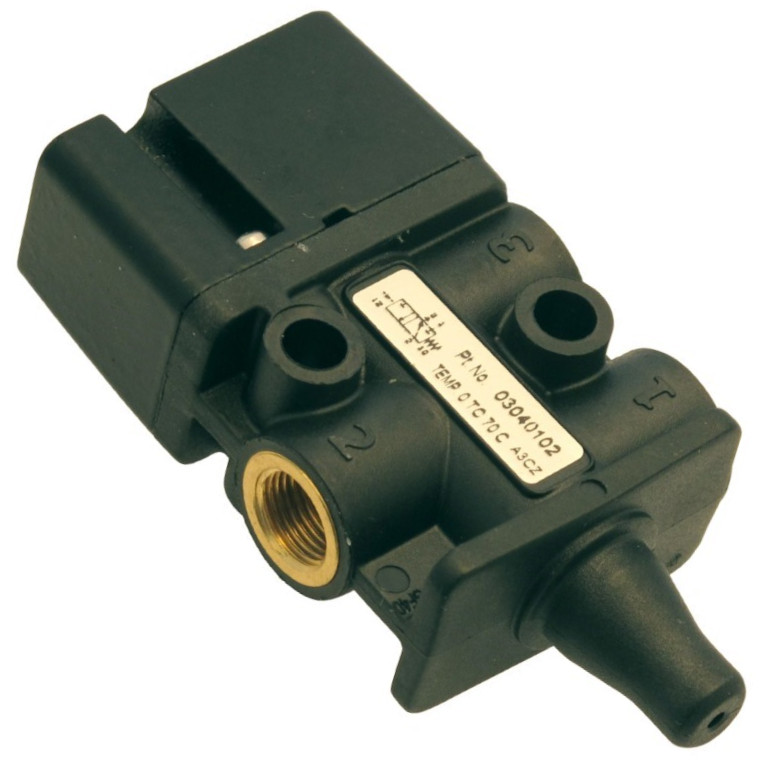

Please see our catalogue for a technical drawing of the valve set-up and positioning. Full range of valves, covering fuel shut off, non-return, pilot or spool or poppet type directional valves in 3/2, 5/2 or 5/3 set ups.
C Couplings are designed to eliminate the problems of mismatched components with a one piece construction that cannot be dismantled.
A form of claw coupling, used as a hose connector and often for compressed air vehicle brakes. The port is at right angles to the axis of the hose.
