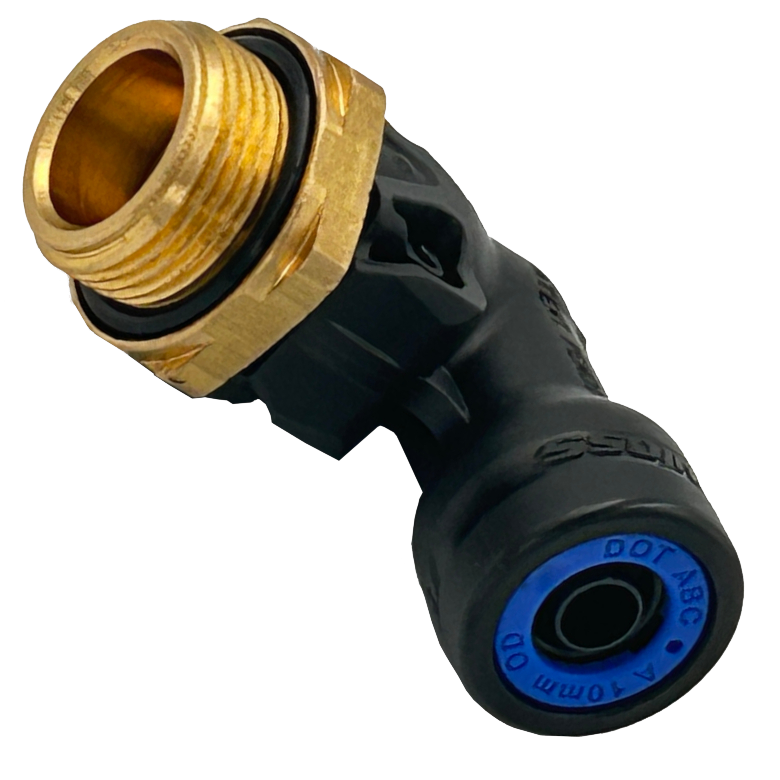

Stud Elbow Adaptor – Raufoss

Tube Size	Thread Size	Part No.
6 x 1	M10 x 1	R03020610
6 x 1	M12 x 1.5	R03020612
6 x 1	M16 x 1.5	R03020616
6 x 1	M22 x 1.5	R03020622
8 x 1	M10 x 1	R03020810
8 x 1	M12 x 1.5	R03020812
8 x 1	M14 x 1.5	R03020814
8 x 1	M16 x 1.5	R03020816
8 x 1	M22 x 1.5	R03020822
10 x 1	M10 x 1	R030210101
10 x 1.25	M10 x 1	R030210102
10 x 1.5	M10 x 1	R030210105
10 x 1	M12 x 1.5	R030210121
10 x 1.25	M12 x 1.5	R030210122
10 x 1.5	M12 x 1.5	R030210125
10 x 1	M14 x 1.5	R030210141
10 x 1.25	M14 x 1.5	R030210142
10 x 1.5	M14 x 1.5	R030210145
10 x 1	M16 x 1.5	R030210161
10 x 1.25	M16 x 1.5	R030210162
10 x 1.5	M16 x 1.5	R030210165
10 x 1	M22 x 1.5	R030210221
10 x 1.25	M22 x 1.5	R030210222
10 x 1.5	M22 x 1.5	R030210225
12 x 1.5	M10 x 1	R03021210
12 x 1.5	M12 x 1.5	R03021212
12 x 1.5	M16 x 1.5	R03021216
12 x 1.5	M22 x 1.5	R03021222
15 x 1.5	M22 x 1.5	R03021522
16 x 2	M16 x 1.5	R03021616
16 x 2	M22 x 1.5	R03021622

A new generation of couplings, based on composite material composition in combination with leading coupling technology. The New Line system enables reduction in material cost, weight, article numbers and increases design flexibility. For a more detailed explanation of the system, please check the relevant section in our catalogue.
